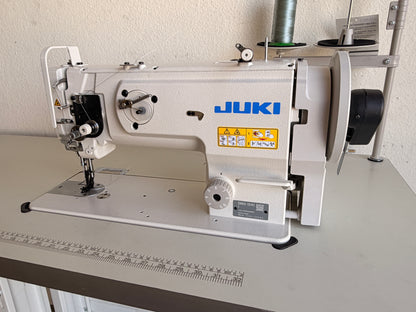

Brand new JUKI DNU1541S Walking Foot Sewing Machine
Brand new JUKI DNU1541S Walking Foot Sewing Machine
Couldn't load pickup availability

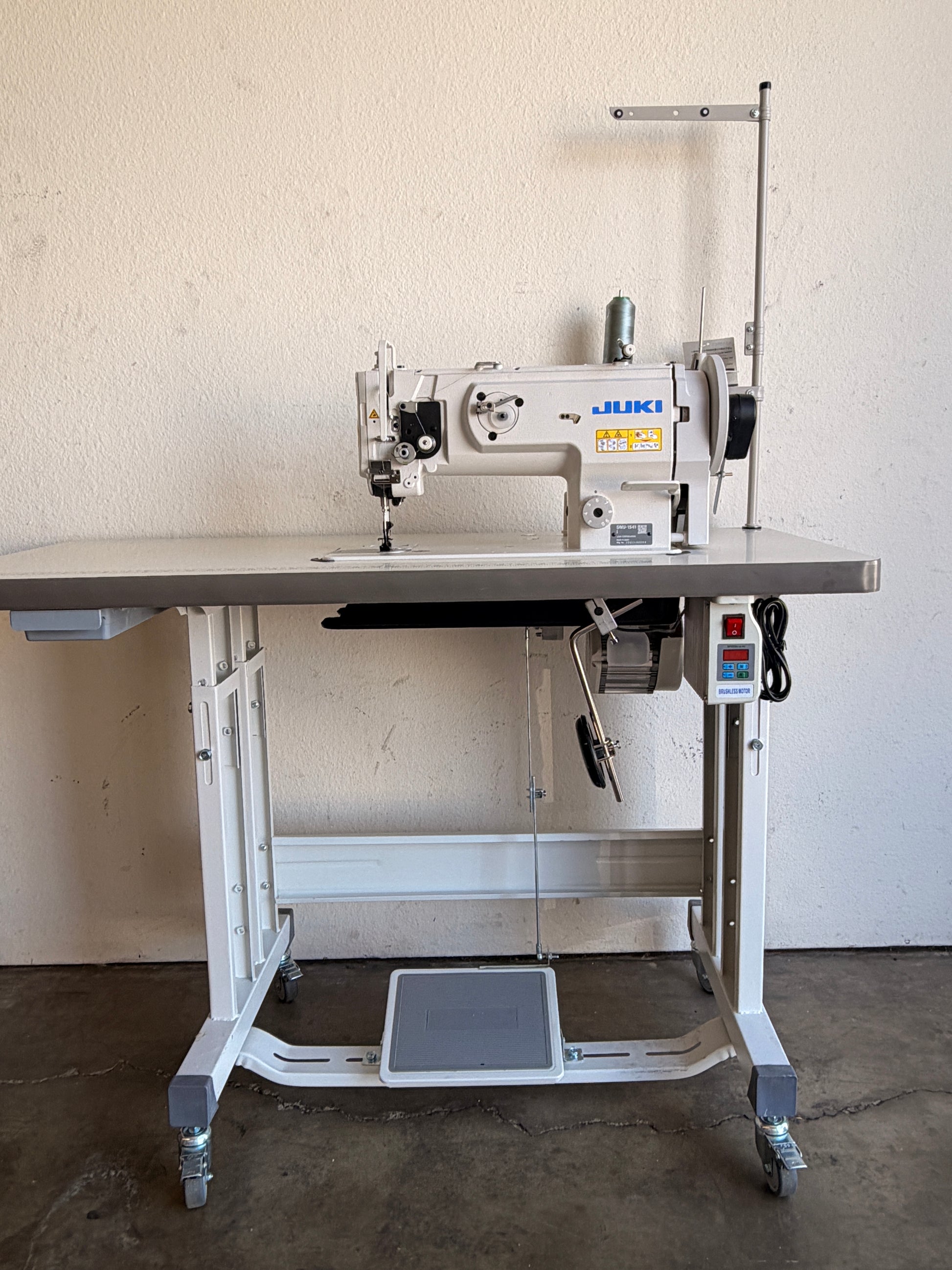

The machine is brand new, made in Japan, with all its features, and comes with a 750W (one horsepower) motor and needle position function. The table and stand are brand new with wheels.
Excellent sewing capabilities and feed performance
The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm.
In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents the needle from fraying, the machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.
Excellent operability and maintainability
The stitch length can be easily selected by the stitch dial.
The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel (φ160mm).
A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.
The machine’s full-open-type top cover design makes adjusting work easier.
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (Hook: automatic.)
A walking foot mechanism is built into the machine arm to prevent oil from scattering
Safety mechanism (DNU-1541S)
When the thread is caught in the hook or any other sewing trouble occurs, the safety mechanism will automatically operate to prevent the machine from being damaged.
The area around the needle entry is designed to be easily observed
Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.
Specification
| Model name | DNU-1541 | DNU-1541S | DNU-1541-7 |
|---|---|---|---|
| Max. sewing speed | 2,500sti/min* | 3,000sti/min* | |
| Max. stitch length | 9mm (forward/backward) | ||
| Needle bar stroke | 36mm | ||
| Lift of the presser foot | By hand: 9mm, By knee: 16mm | ||
| Thread take-up | Slide type | ||
| Amount of alternating vertical movement | 2.5~6.5mm | 1~6.5mm | |
| Dial for the adjustment of alternating vertical movement |
- | Provided as standard | |
| Bottom-feed adjusting mechanism | - | Provided as standard | |
| Hook | Horizontal-axis full-rotary double-capacity hook | ||
| Needle (at the time of delivery) | 135×17 (Nm160) Nm125~Nm180 | ||
| Thread | #30~#5, B46~B138, Nm=60/3~15/3 | ||
| Pitch changing method | By dial | ||
| Bobbin thread winder | Provided as standard | ||
| Knee-lifter mechanism | Provided as standard | ||
| Safety mechanism | - | Provided as standard | - |
| Lubrication | Centralized oil wick lubrication (hook: automatic) | ||
| Lubricating oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | ||
| Distance from needle to machine arm | 264mm | ||
| Bed size | 477mm×178mm | ||
| Automatic reverse feed function | Option | Provided as standard | |
| Compressed air and air consumption | - | 0.5MPa (5kgf/cm²), 0.3Nl/min | |
| Motor output | 750W | ||
| Power requirement | - | Single-phase 100~120V, 200~240V 3-phase 200~240V |
|
| Weight of the machine head | 36.5kg | 42.5kg | |
