JUKI DDL-9000B-SS pre-owned Direct drive single needle sewing machine
JUKI DDL-9000B-SS pre-owned Direct drive single needle sewing machine

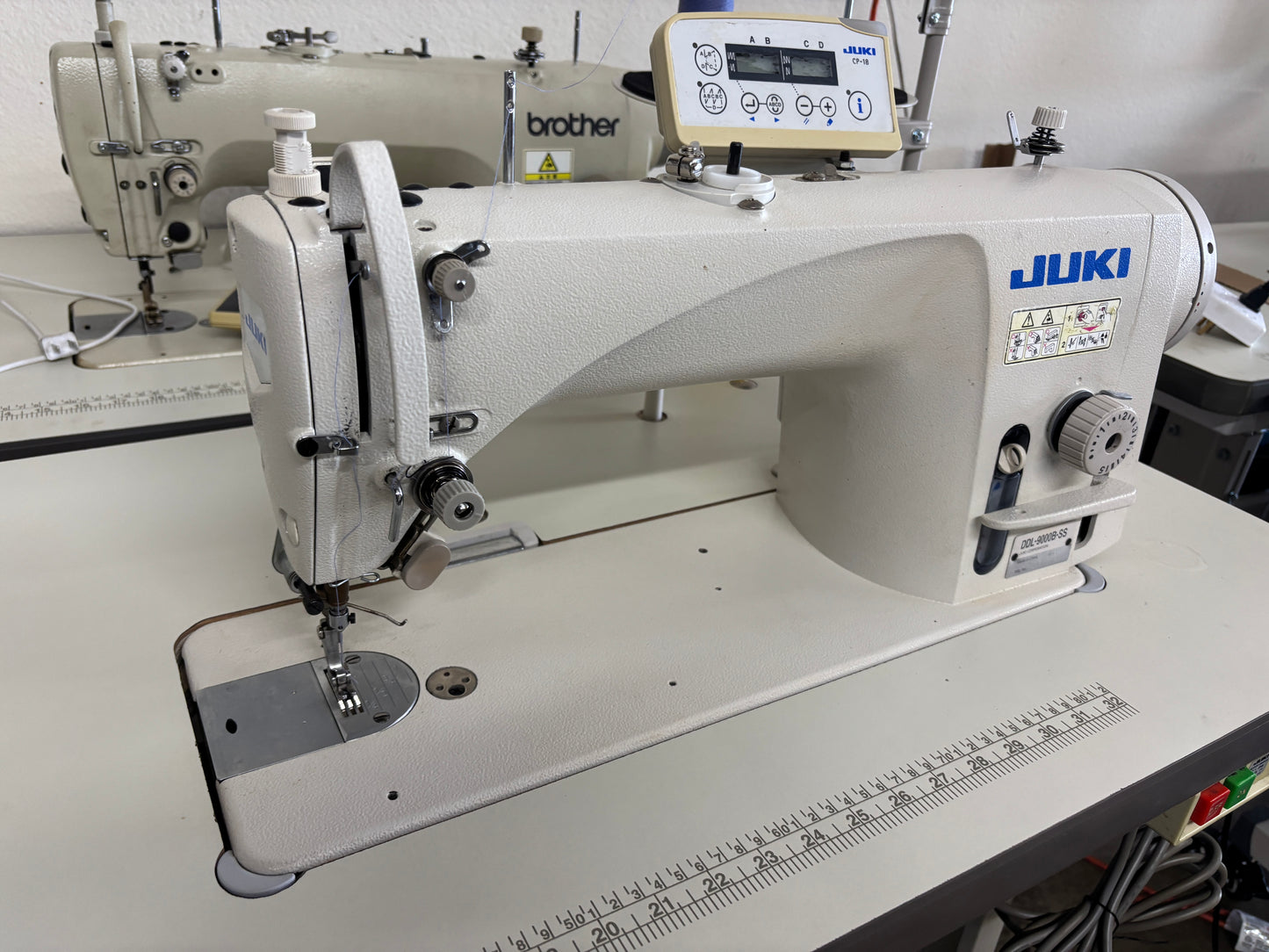

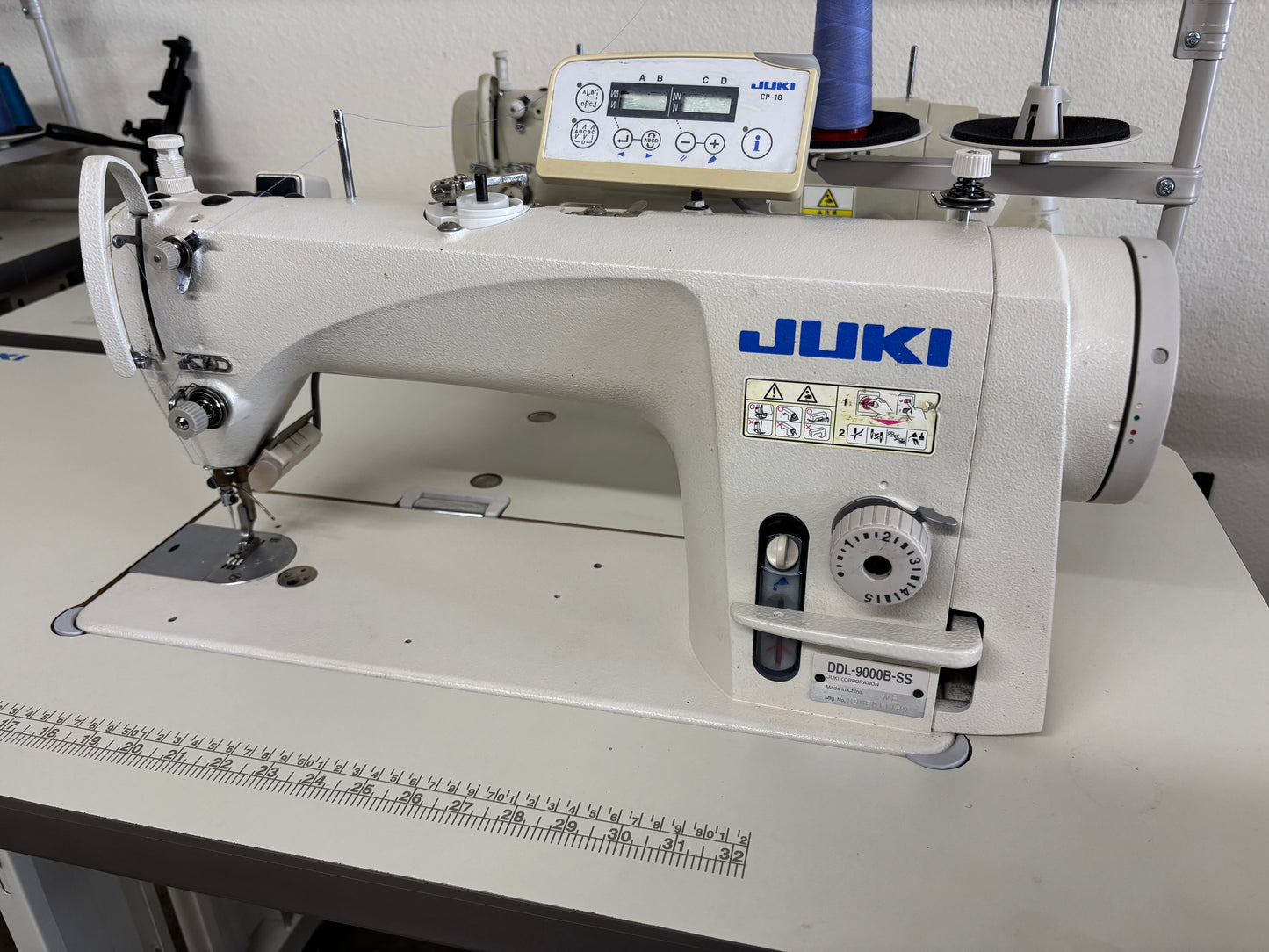

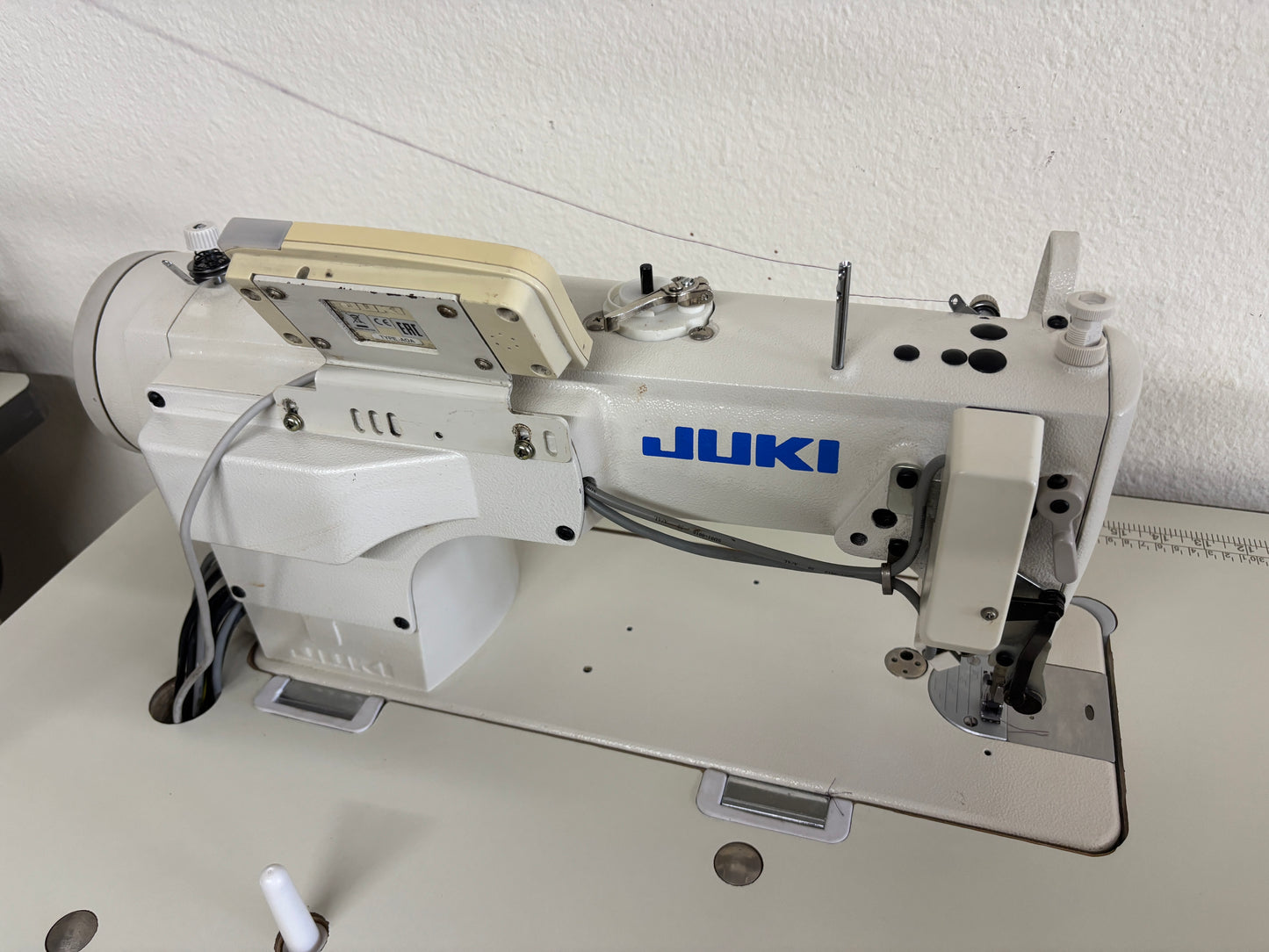

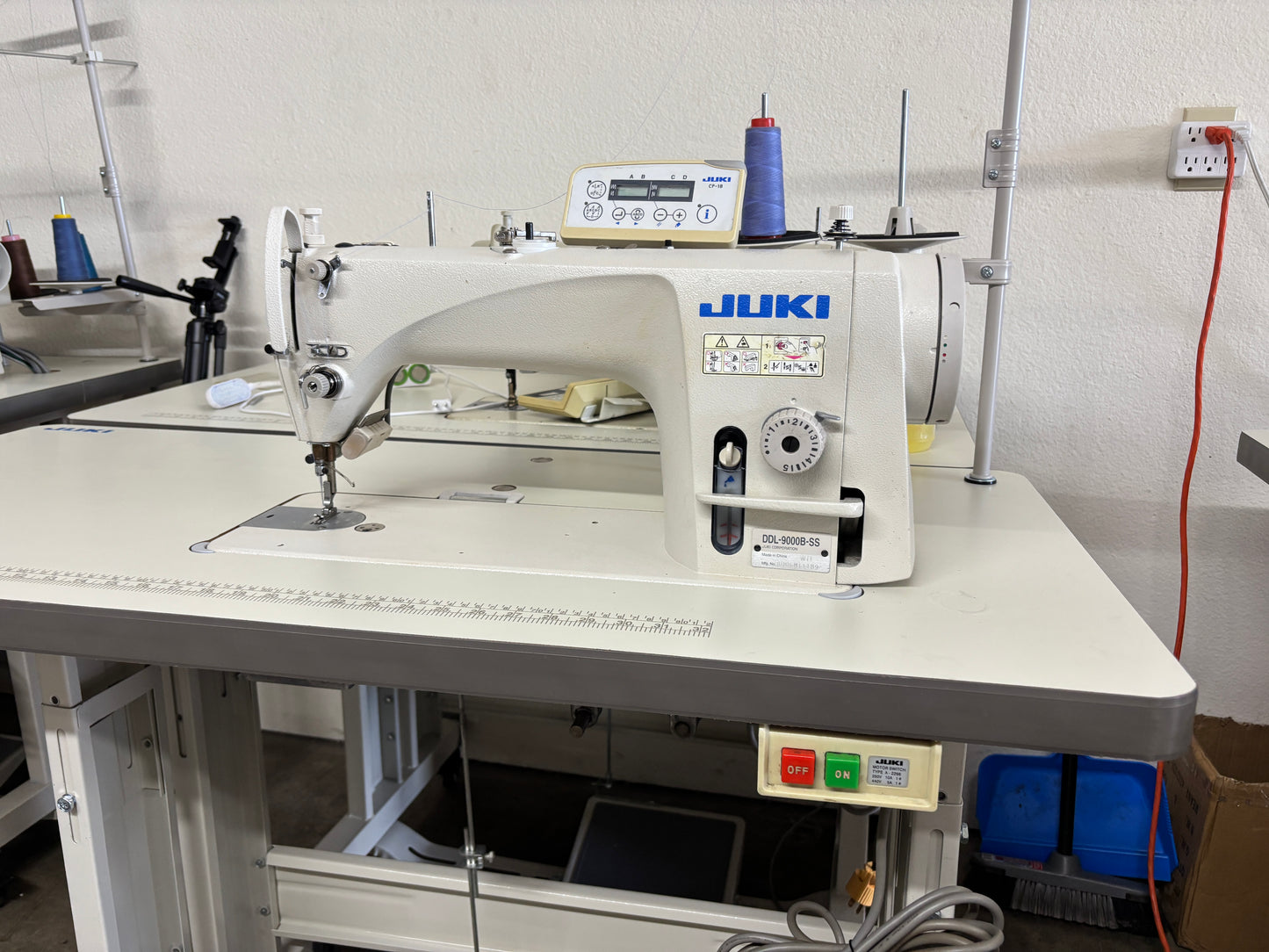

This is used original JUKI DDL 9000B-SS lockstitch sewing machine. Head is used, table and stands are brand new. It works with 110V single phase.

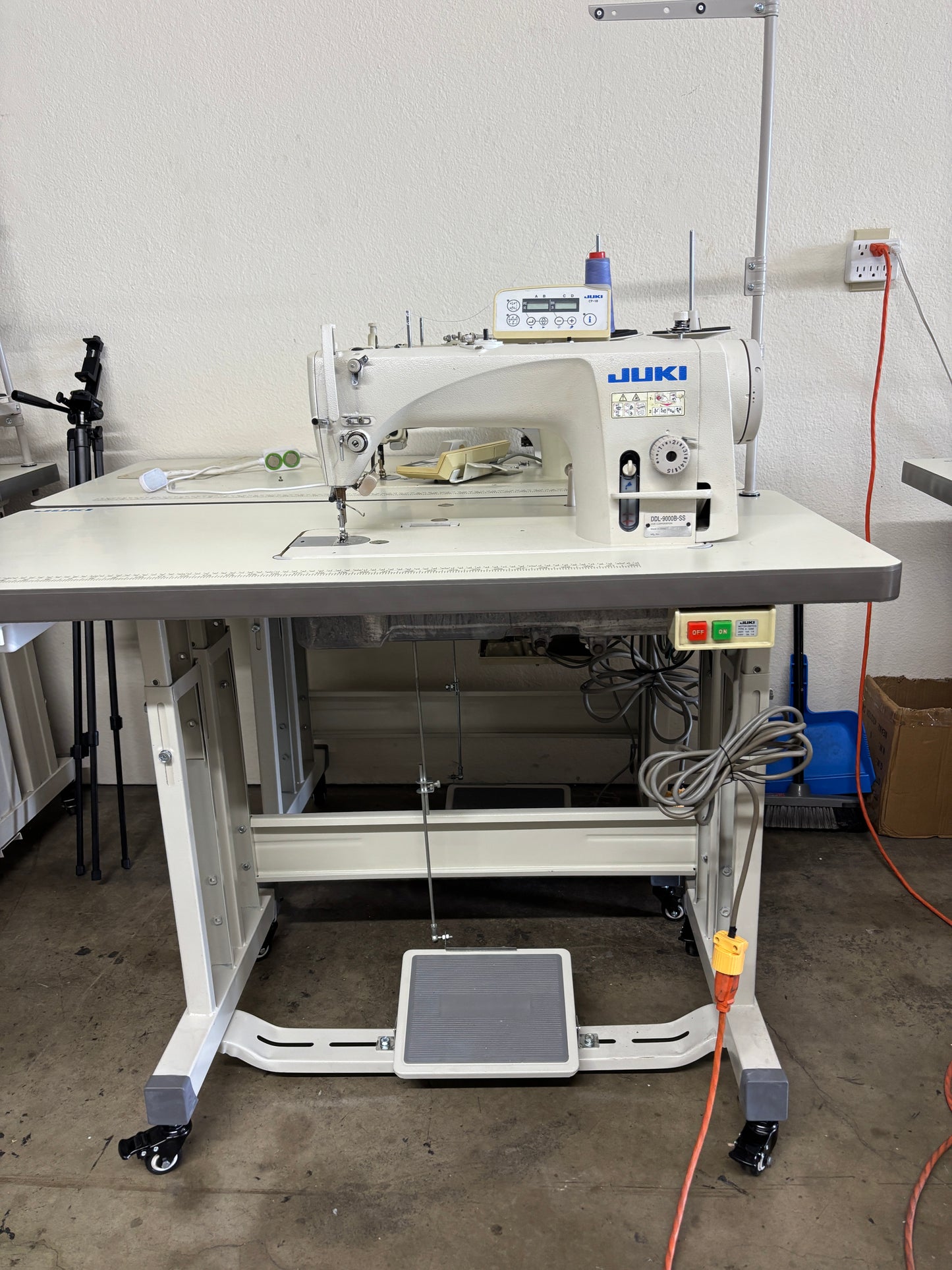

Stand comes with wheels which makes it easy to move. Stand is double columns, make it stands strong.

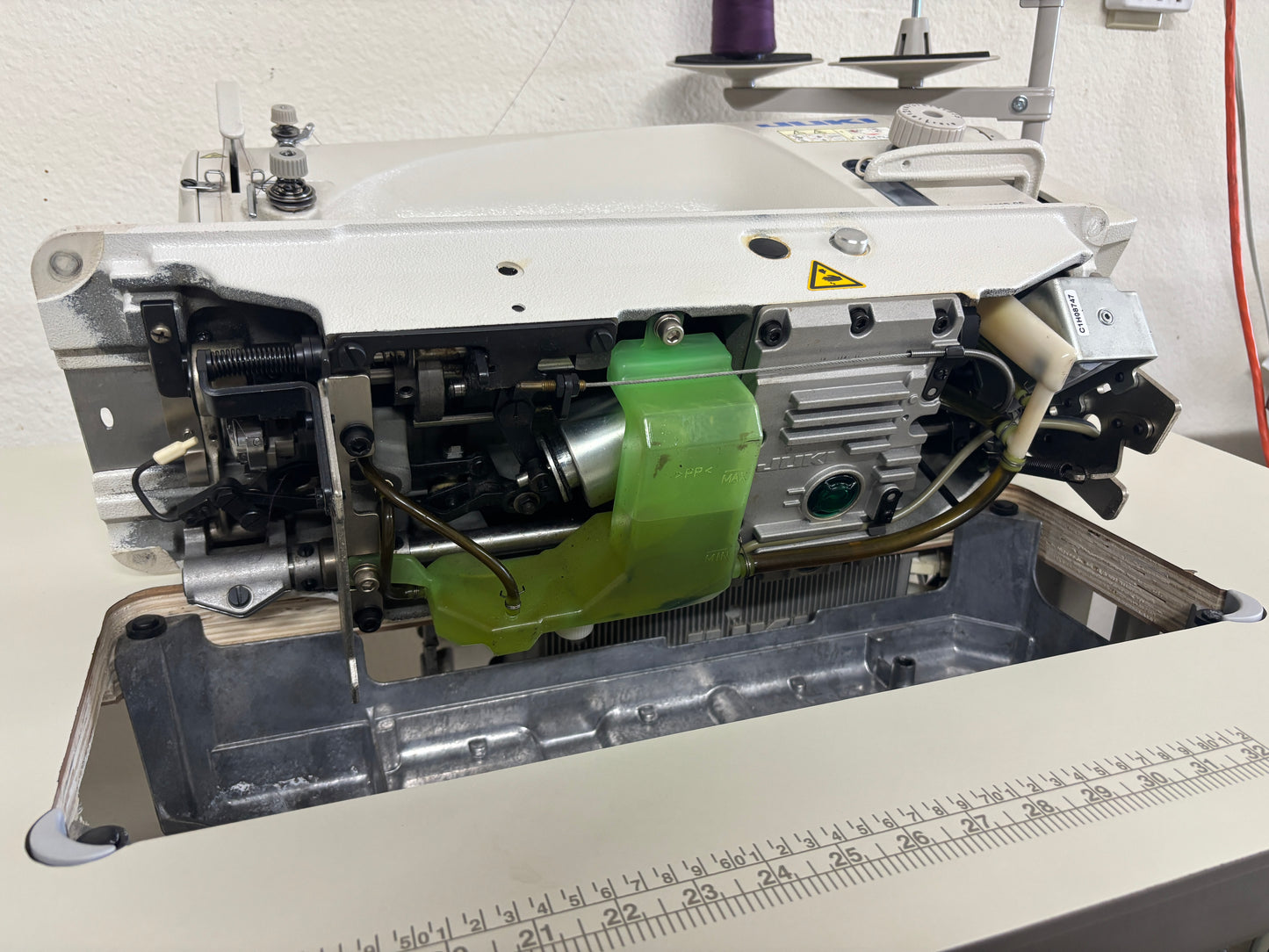

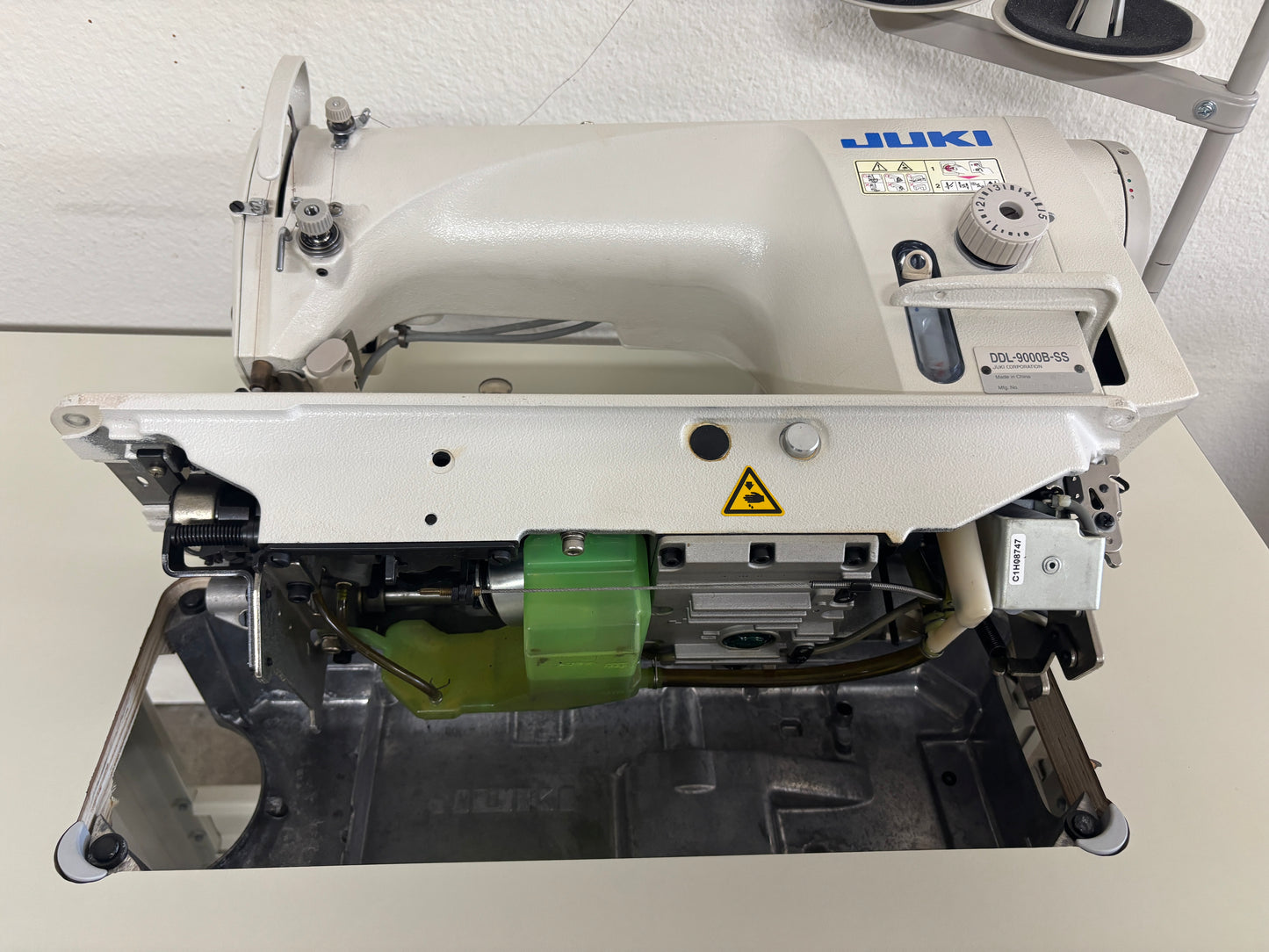

Machine is fully functional, tested and maintenance was done.
Direct-drive, High-speed, 1-needle Lockstitch Machine with Automatic Thread Trimmer
This 1-needle lockstitch machine is JUKI's highly advanced model provided with a thread trimmer which operates at the highest speed of its kind, a mechanism which promises silent operation and various technical features which promise power saving.
Here is the specification of the machine.
The line-up of the DDL-9000B series in terms of lubricating method of the machine head consists of: S: Minute-quantity lubrication, M: Semi-dry head type and D: Fully-dry head type.
All of the three machine head types are friendly to the environment since they prevent oil stains and minimize the quantity of stain remover used. Select one of the three different machine heads according to your sewing applications.
The latest compact-size servomotor has been adopted.
The DDL-9000B has adopted the latest compact-size servomotor as its driving source. This latest compact-size servomotor is an energy-saving, highly efficient motor which is able to run under a high torque and has a broader range of speed.
In addition, the servomotor is installed with a direct-drive system to transmit the motor power directly to the sewing machine, thereby achieving improved power-consumption saving, quicker response, quicker startup, increased accuracy of the stop position and stronger material penetrating force of the needle.

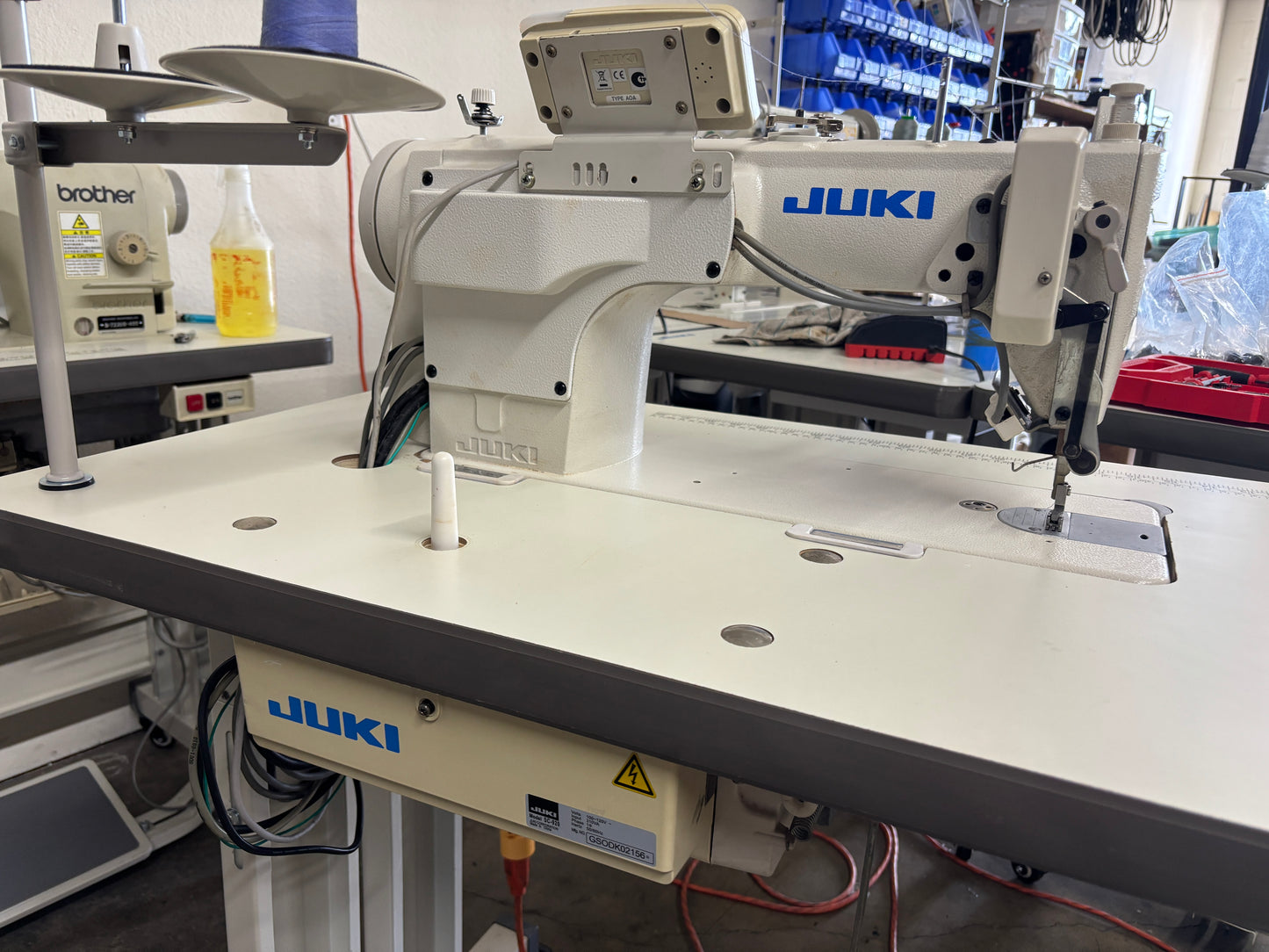

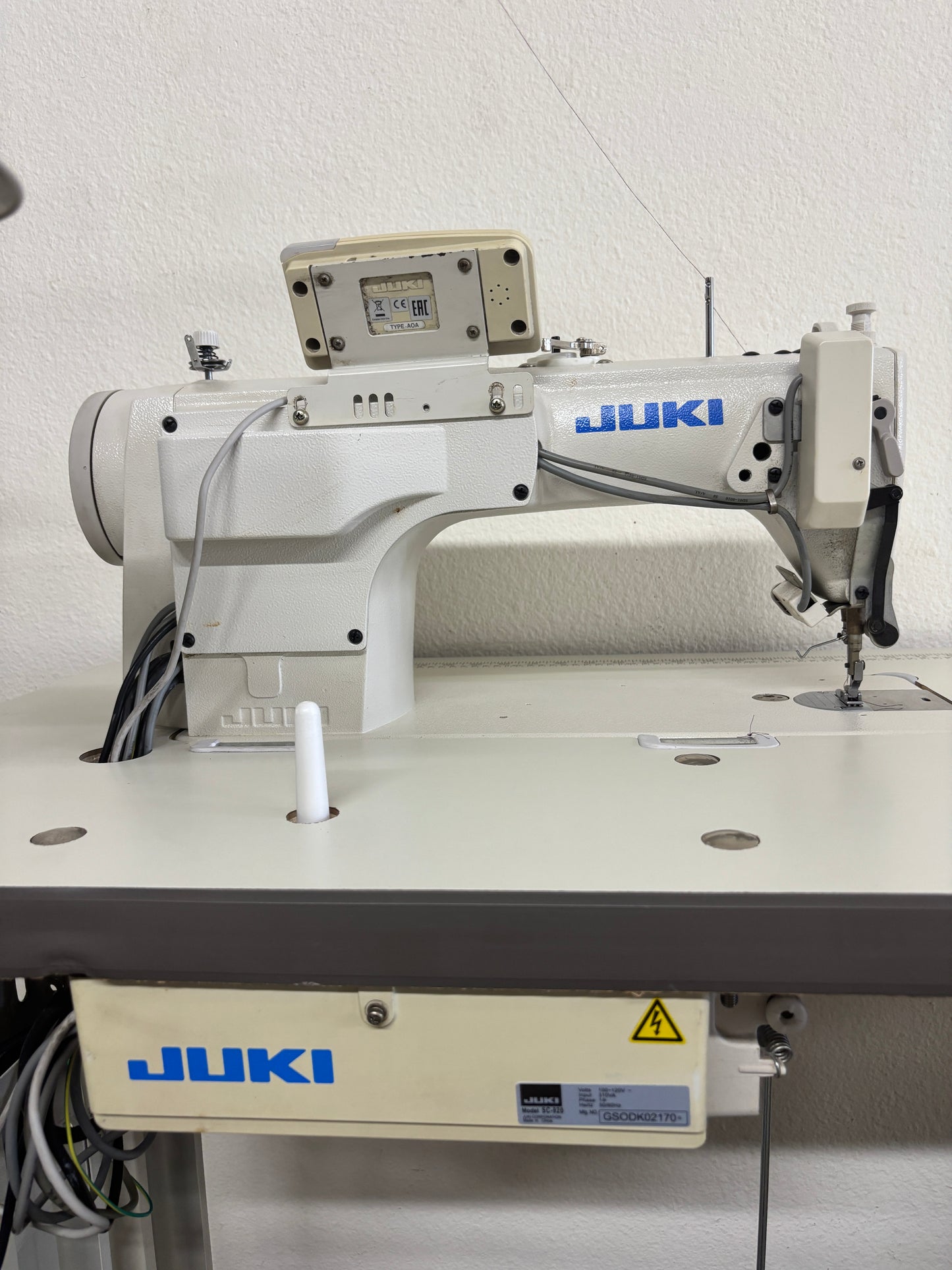

The new model control box, which energy-saving mode is provided.
The new model control box SC-920, which consists of an energy-saving mode, has been developed. This control box is the first one which provides an energy-saving mode for the sewing machine. The power consumption during standby, when the motor is at rest, is reduced by approximately 20%.
In addition, abundantly incorporated state-of-the-art energy-saving features such as a compact-in-size solenoid for the auto-lifter (optional) allow the DDL-9000B to reduce power consumption, to increase productivity and to be friendly to the environment.
Dry technology Oil stains on the material being sewn are reduced, thereby improving product quality.
The advanced dry technology helps prevent oil stains on the material being sewn. The main source of oil stains is the frame. The semi-dry head type sewing machine comes with a frame which does not need lubrication. The fully-dry head type sewing machine is an even further evolved dry-head type which comes with a frame and a hook section which do not need lubrication.
Thread trimming mechanism Thread trimming speed has been doubled or more that of the conventional model!
Analysis of operator work has revealed that the working rhythm substantially affects the productivity.Based on the aforementioned fact, JUKI focused on the thread trimming speed. By maximizing the thread trimming speed, the operating rhythm can be improved.
- Application: For light to medium-weight materials
- Max sewing speed: 5,000sti/min
- Max stitch length: 4.5mm 1
- Lift of the presser foot by hand: 5.5mm
- Lift of the presser foot by knee: 15mm (max)
- Lift of the presser foot by auto: 10mm
- Needle (at time of delivery): DB×1 (#21) #20~#23, For JE:134(Nm130) Nm120~Nm160
- Hook: Automatic-lubricating full-rotary hook
- Lubrication: Minute-quantity lubrication to needle bar and hook
- Lubricating Oil: JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
- Distance from Needle to Machine Arm: 300mm
- Size of Bed: 517mm×178mm
- Total Weight: 83.5kg
- Bobbin Thread Winder: Built-in the machine head
- Machine Head Drive: Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
1 The maximum sewing speed is 5,000 stitches per minute or less in cases where the maximum stitch length is 3.5mm or more.
