Pre-owned Juki DNU-1541-7 Fully Automatic Walking Foot Sewing Machine
Pre-owned Juki DNU-1541-7 Fully Automatic Walking Foot Sewing Machine
Couldn't load pickup availability

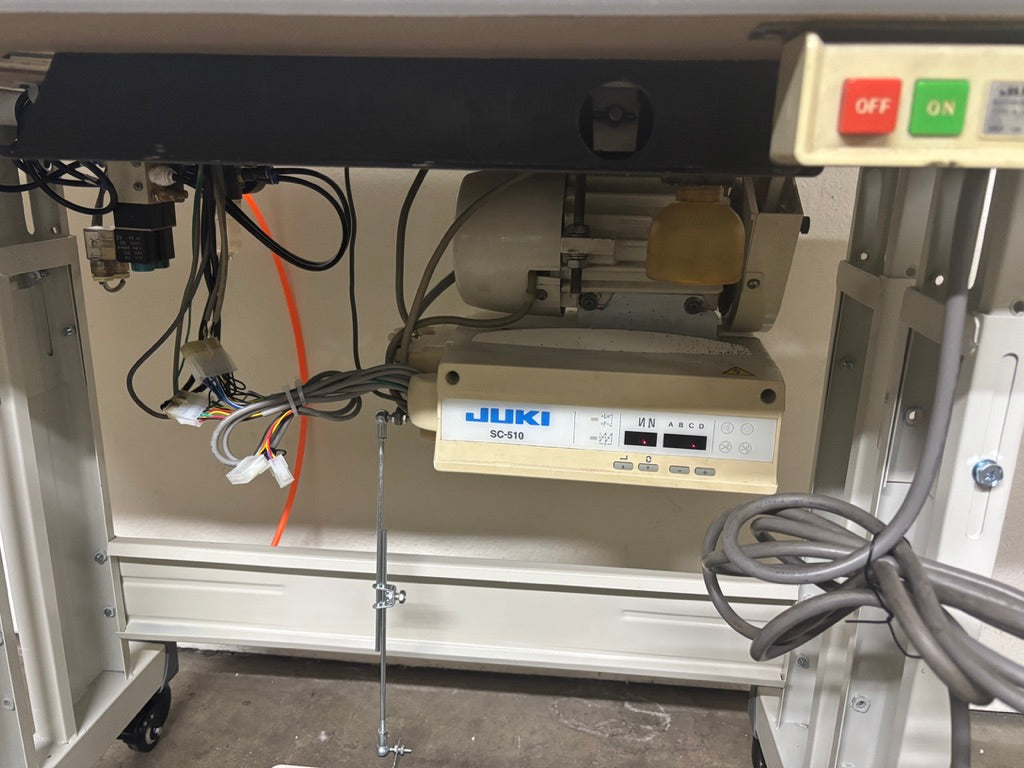

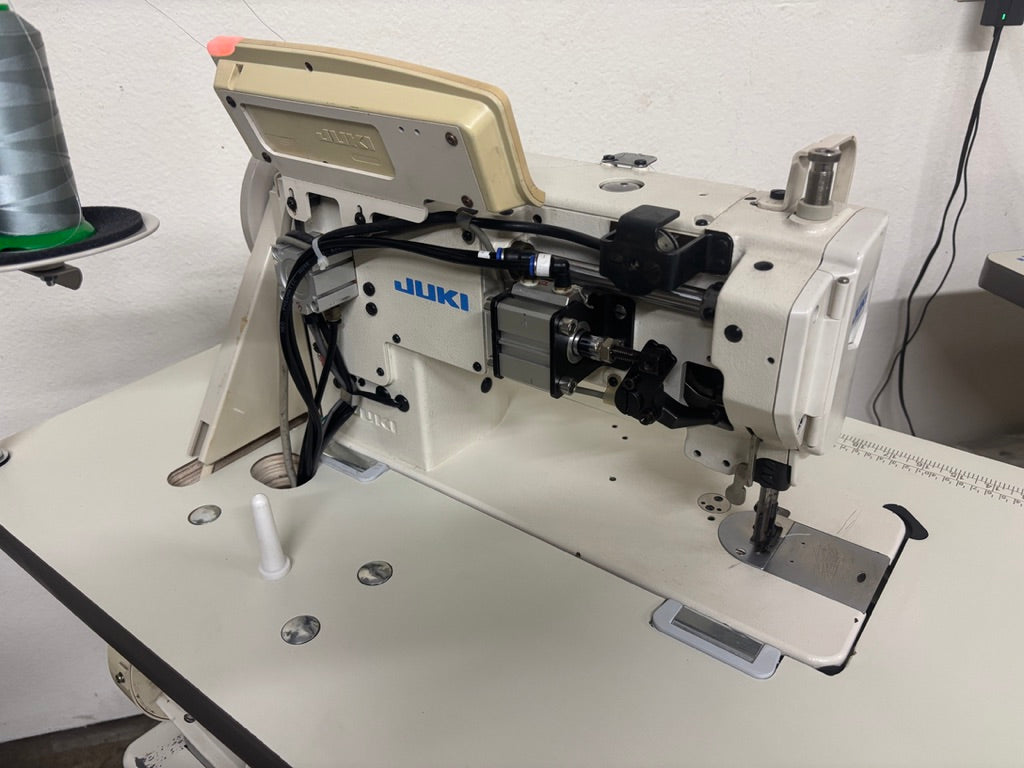

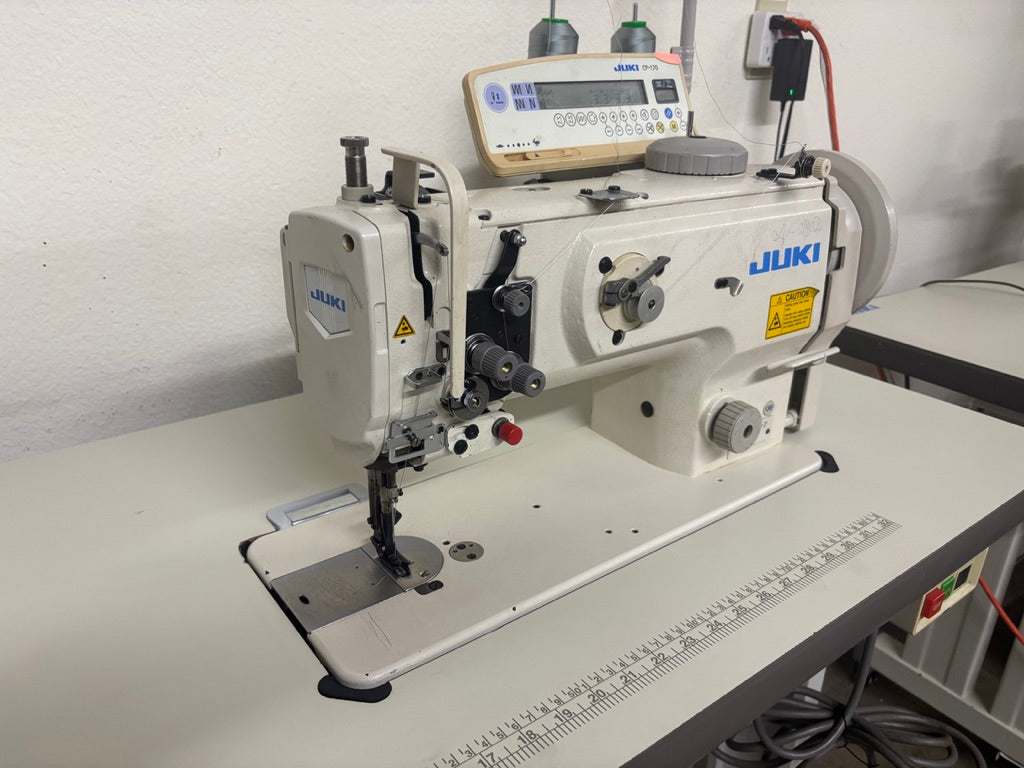

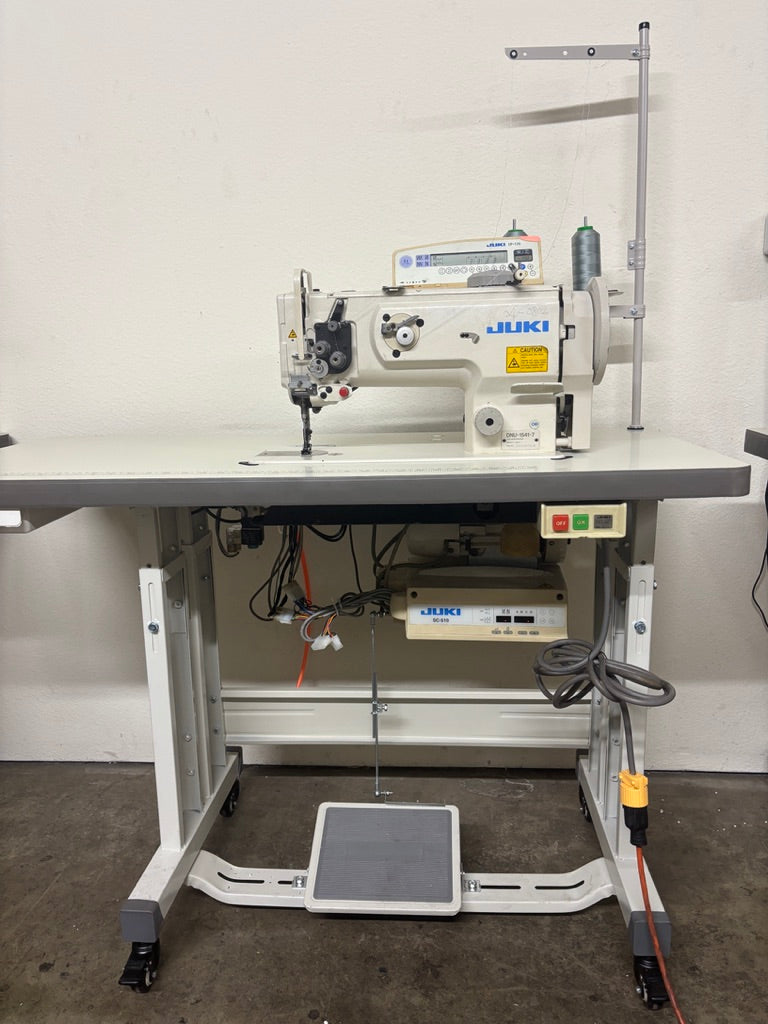

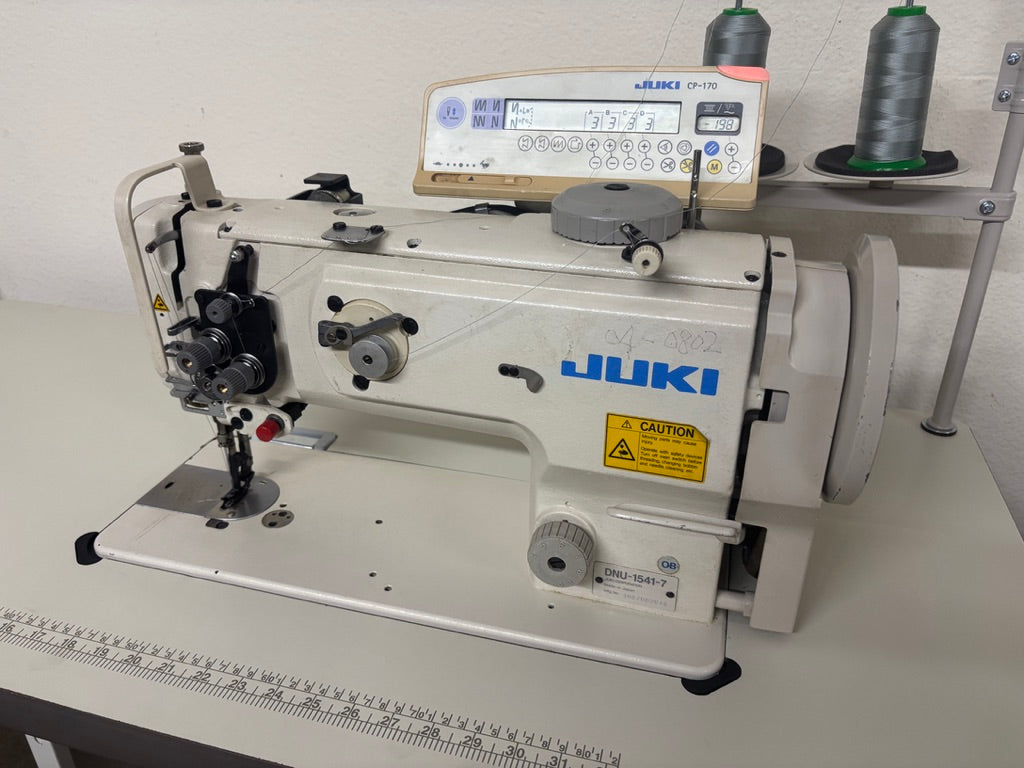

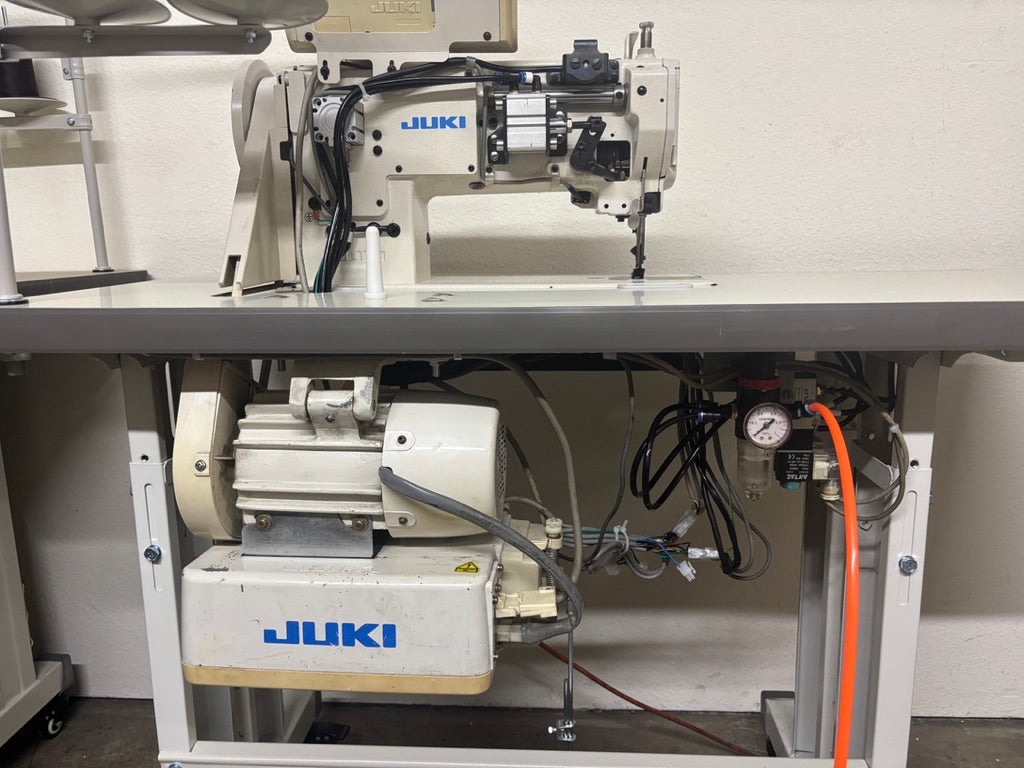

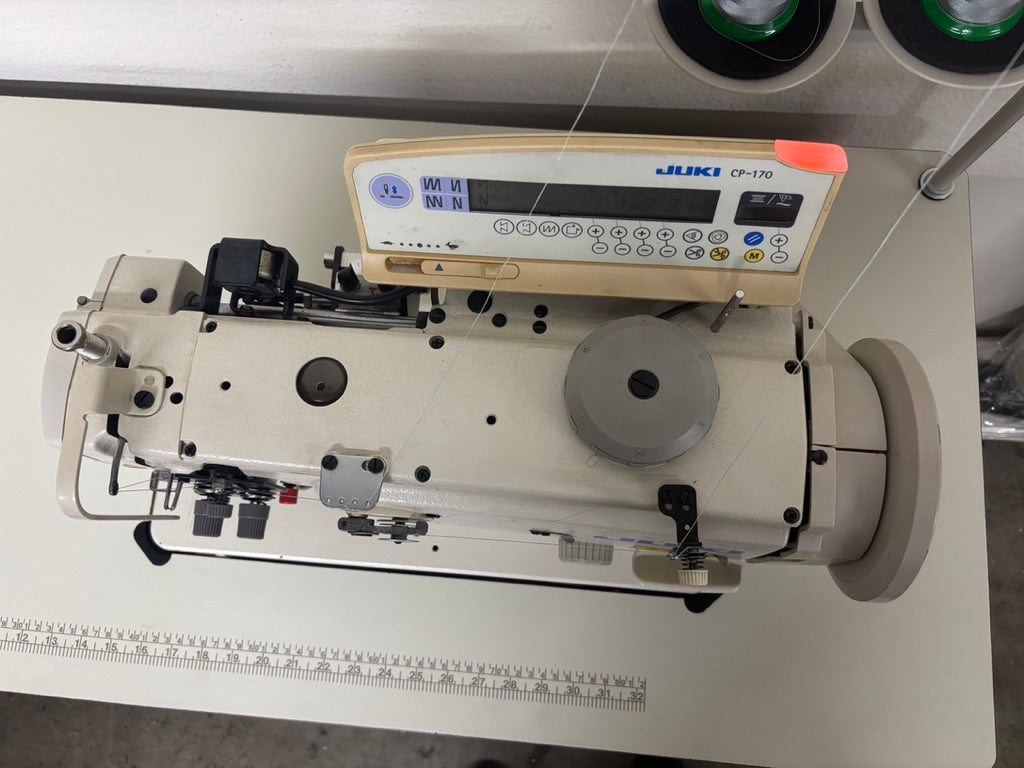

Pre-owned Juki DNU 1541-7 Fully automatic walking foot sewing machine. The machine comes with a brand new table set with wheels to make it easy to move. It works with 120V electrical. This machine needs pressure air.
The machine head is in good condition and works great. We tested it, ready to work.
We can ship the machine to you. Please contact us for shipping information before you place an order.
MADE IN JAPAN
The JUKI DNU-1541-7 is a FULL AUTOMATIC single needle walking foot machine for sewing medium to heavy weight leather, canvas, vinyl, and thick synthetic materials.
With its larger needle bar stroke, higher press foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The machine's rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.
Excellent sewing capabilities and feed performance
The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm.
In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.
High-speed performance increases productivity
The machine delivers increased productivity at sewing speeds as high as 3,000sti/min (DNU-1541-7).
The vertical stroke of the walking foot and presser foot can be easily set and changed
The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stroke setting. This ensures ideal sewing conditions at all times.
A helpful automatic reverse feed function is provided as standard
With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached to the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.
Excellent operability and maintainability
The stitch dial can easily select the stitch length.
The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel (φ160mm).

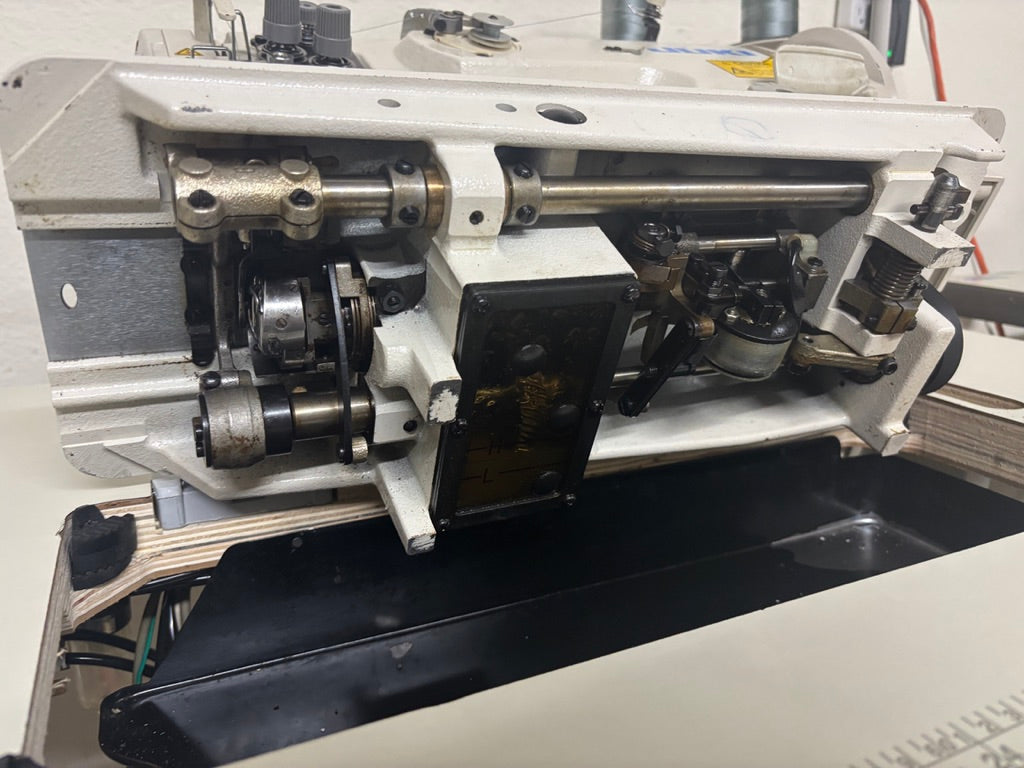

A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.

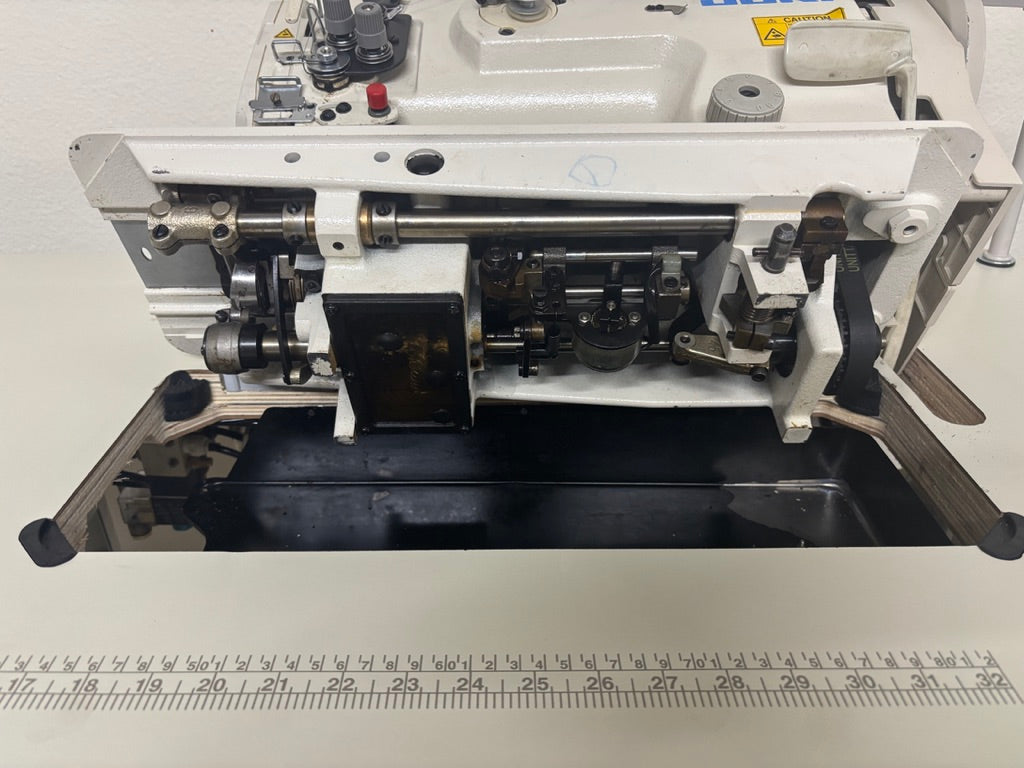

The machine’s full-open-type top cover design makes adjusting works easier.
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required to oil the machine. (Hook: automatic.)
A walking foot mechanism is built into the machine arm to prevent oil from scattering.
MACHINE SPECIFICATIONS:
- Max. Sewing Speed: 2,500 Stitch per Minute
- Max. Stitch Length: 9mm (forward / backward)
- Needle Bar Stroke: 36mm
- Lift of the Presser Foot by Hand: 9mm
- Lift of the Presser Foot by Knee: 16mm
- Thread Take-Up: Slide Type
- Amount of Altering Vertical Movement: 2.5~6.5mm
- Hook: Horizontal-Axis Full-Rotary Double-Capacity Hook
- Needle (at time of delivery): 135x17 (Nm160) Nm125~Nm180
- Bobbin Case: #18045
- Bobbins: #18034
- Thread: #30~#5, B46~B138, Nm=60/3~15/3
- Pitch Changing Method: By Dial
- Lubrication: Centralized Oil Wick
- Lubricating Oil: Juki New Defrix oil No.2 (equivalent to ISO VG32)
- Distance from Needle to Machine Arm: 264mm
- Bed Size: 477x178mm

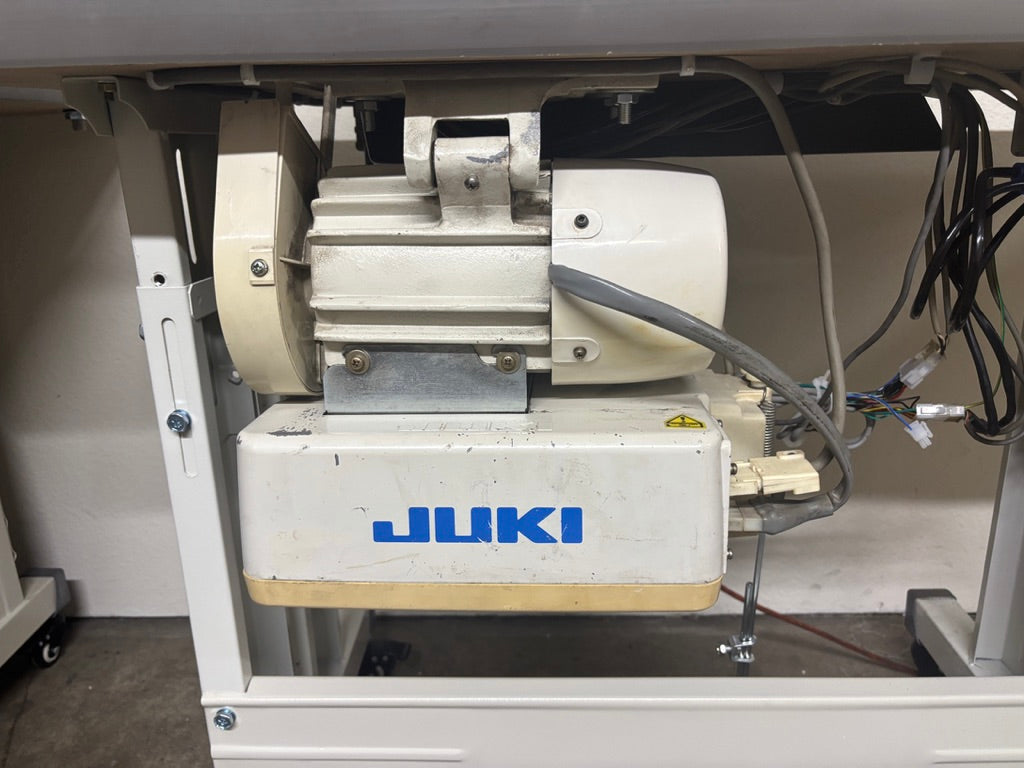

- Motor Output: 750W
- The weight of the Machine Head: 36.5kg
