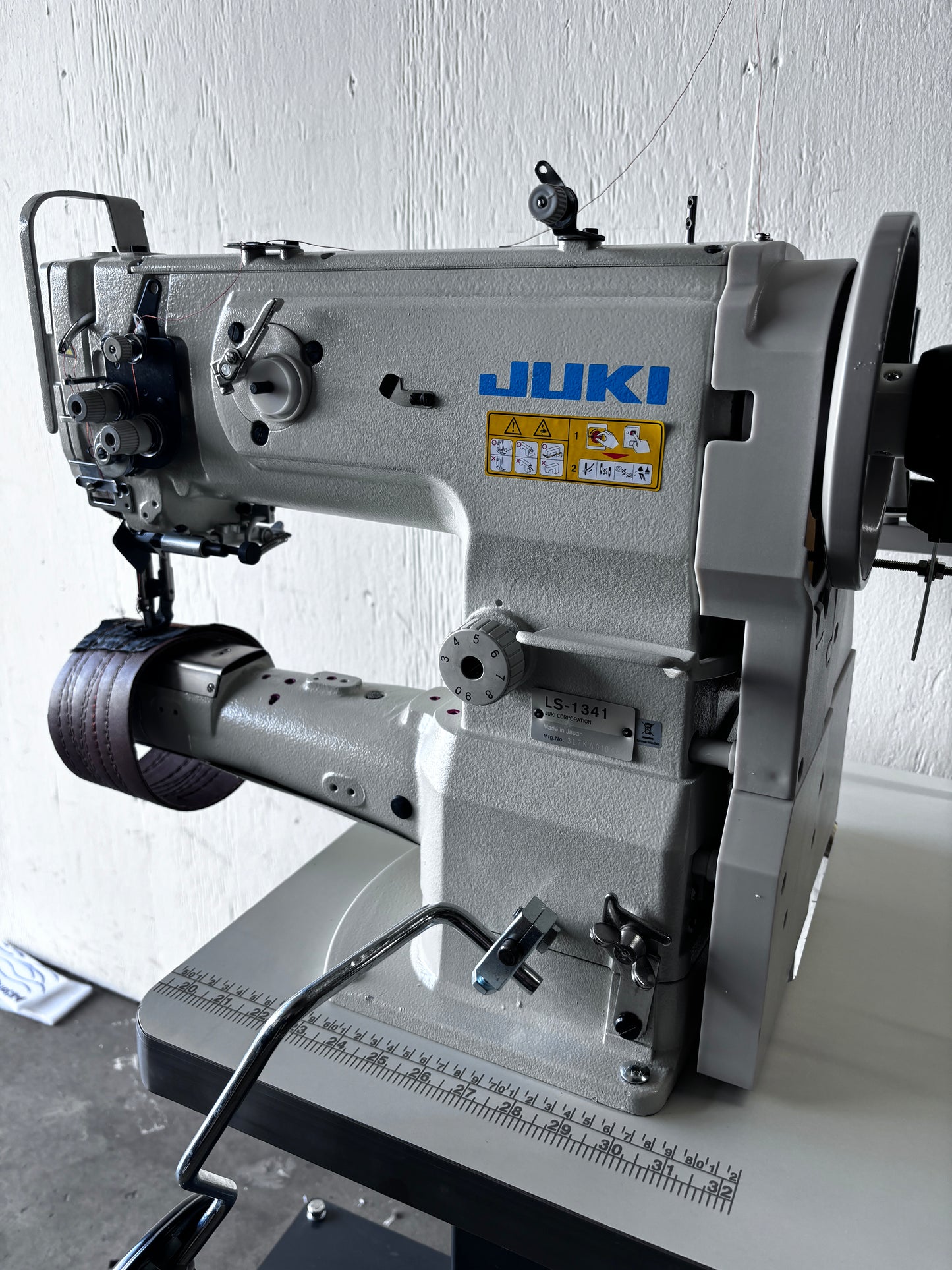

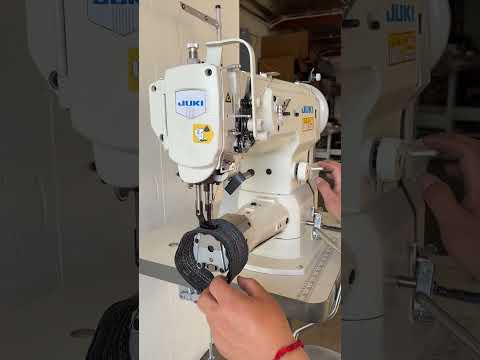

Pre-owned Original JUKI LS 1341 cylinder bed walking foot sewing machine
Pre-owned Original JUKI LS 1341 cylinder bed walking foot sewing machine
Couldn't load pickup availability

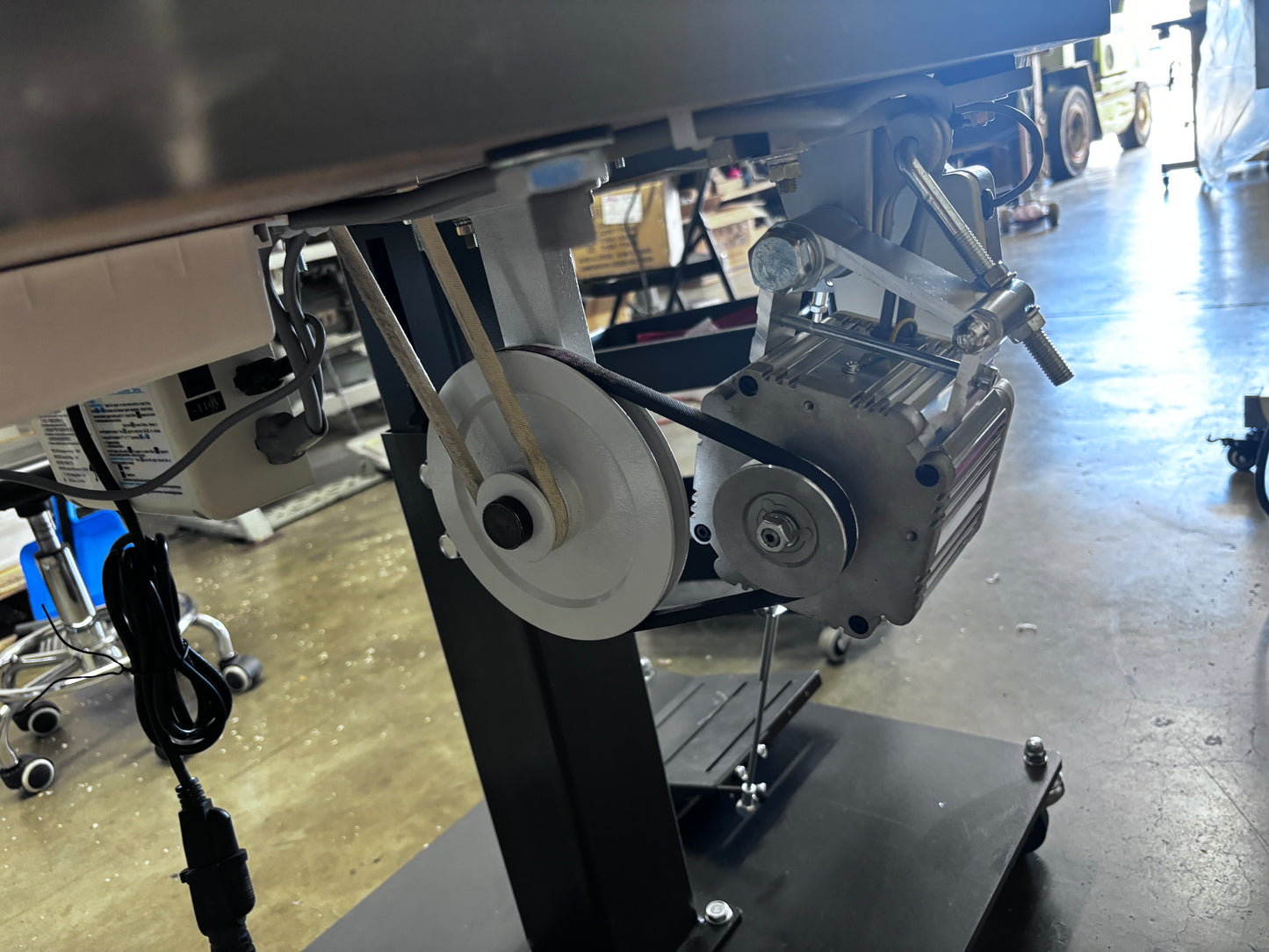

The pre-owned Juki machine head was originally made in Japan, with a brand new table set and 750W servo motor. Machine works great with no issues.

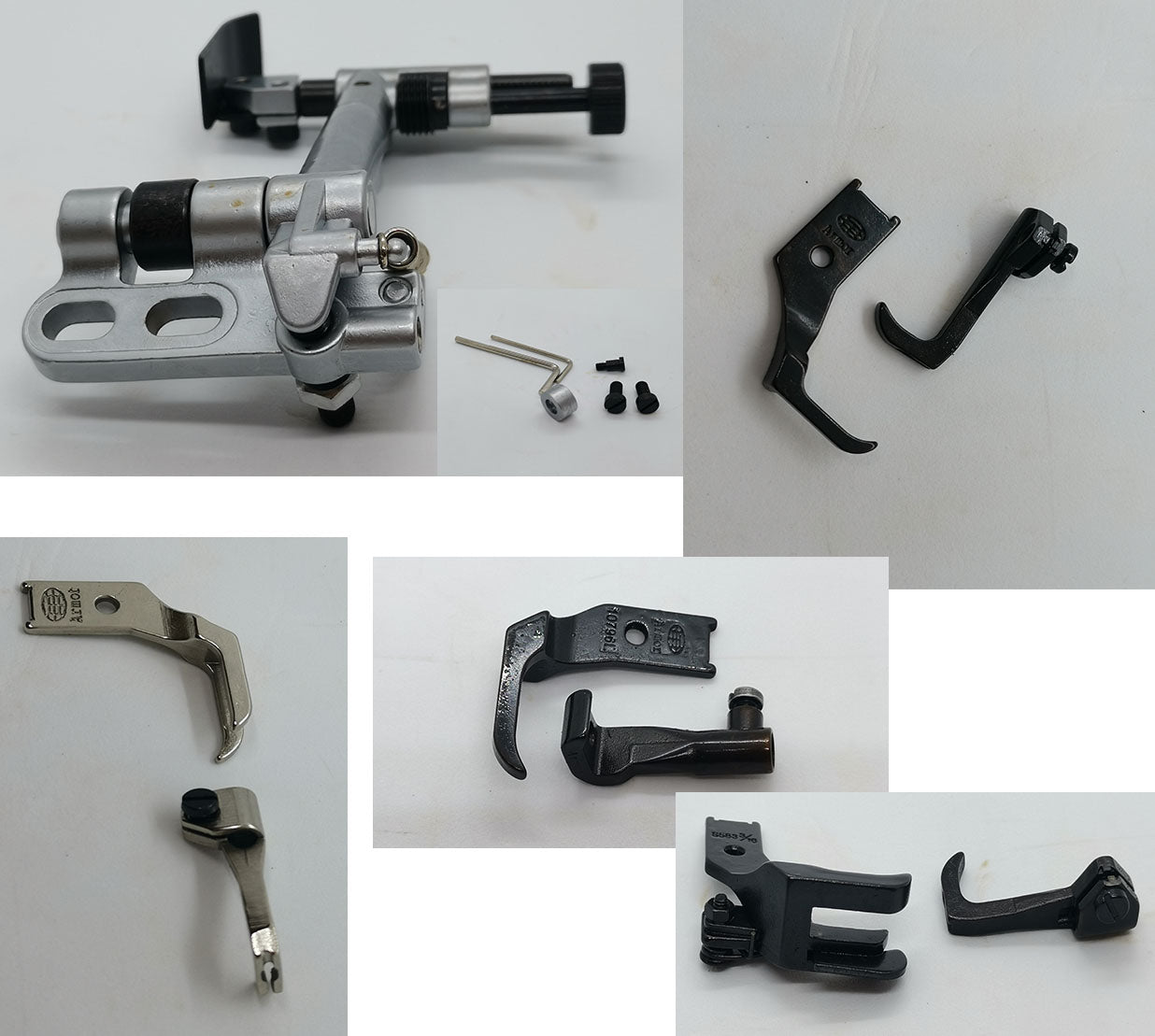

- Suspended edge and roller guide;
- Double magnetic 30 LED lights with touch DIMMER.

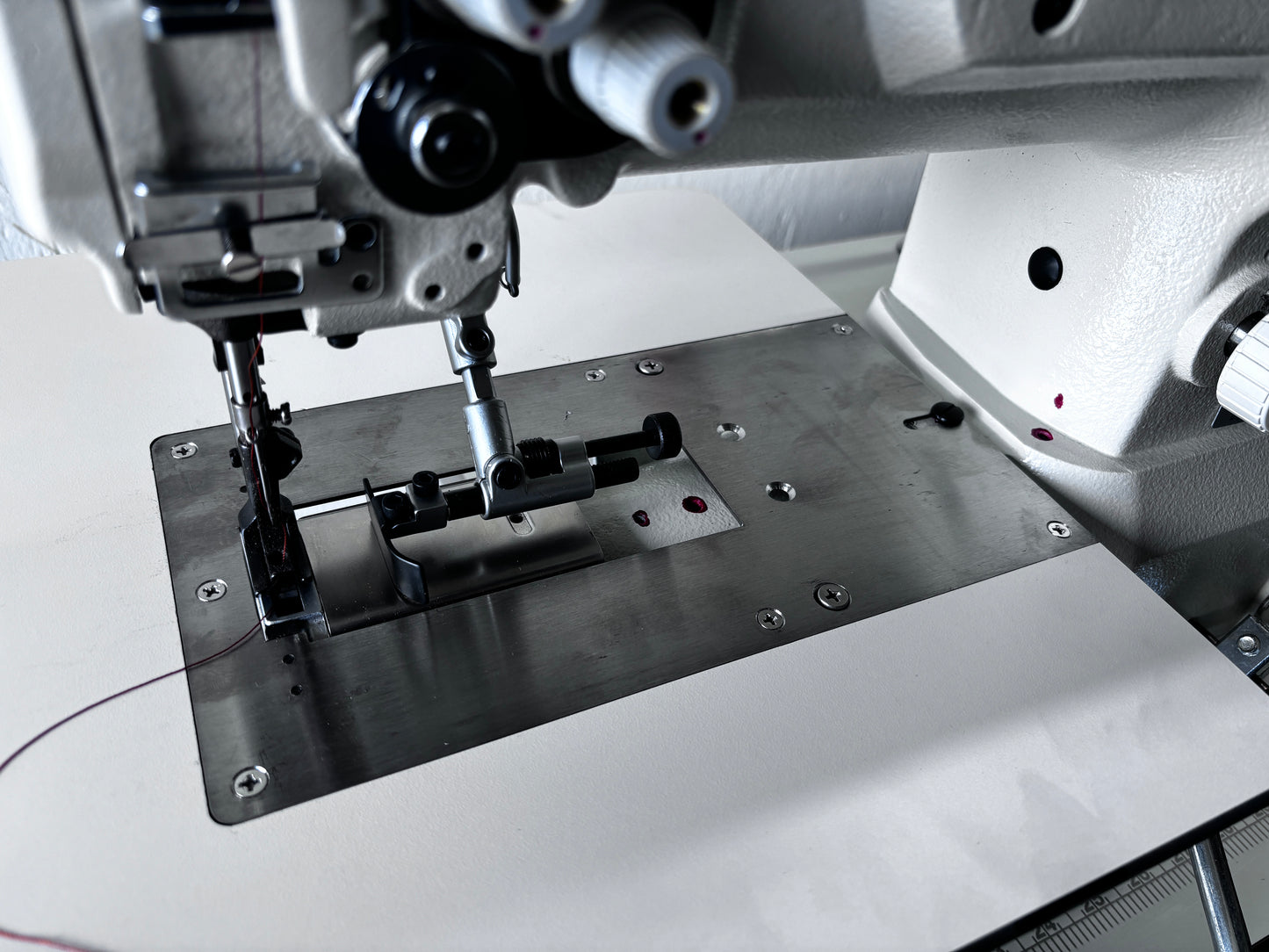

- Presser foot with guide
- Wide zipper foot,
- Narrow zipper foot
- Narrow double-toe presser foot
- Binder attachment

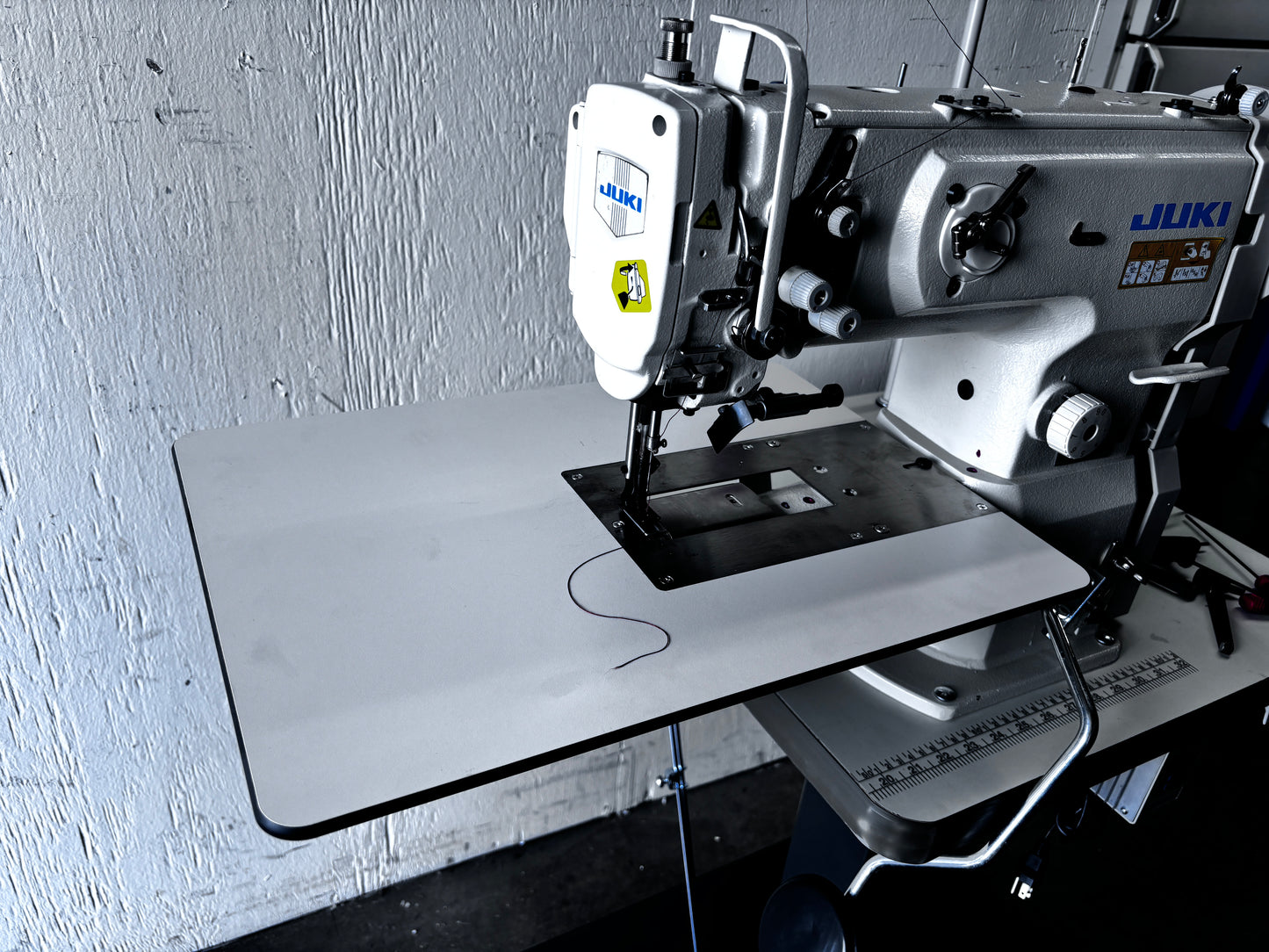

- expand board (option)
LS 1341 Series with large vertical-axis hook
The LS Series offers a consistent stitching pitch and outstanding ability to sew sharp curoutstanding ability to sew sharp curves. This makesves. This makes the machine ideal for the sewing of tubular articles.the machine ideal for the sewing of tubular articles.
Sewing capabilities and feed performance that respond to a broad range of uses in the sewing of heavy materials.
With its larger needlebar stroke, larger lift of the presser foot, and newly adopted double-tension mechanism, the machine sews beautifully with thick threads (low count thread) and at higher thread tensions. This allows the machine to sew a broad range of heavy materials.
* The LS-1340 is provided with a single-tension mechanism.
The newly developed mode of highly rigid rectangular feed guarantees outstanding feed performance. In addition, the ratio between the alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. With this feature, the machine sews multi-layered parts of the material consistently and without stitch gathering.
The machine is equipped as standard with a mechanism to correct uneven material feed by making-micro adjustments to the bottom-feed.
Excellent for the sewing of sharp curves.
The slimmed-down throat plate easily responds to the sewing of small tubular articles with diameters as small as φ40mm.
This enhances the machine's ability to smoothly sew not only bags and shoes, but also small articles such as wallets.
Excellent operability and maintainability.
The underside of the top end of the cylinder-bed is provided with an easy-to-remove cover. This promises easy cleaning of thread wastes.
The stitch length can be easily selected by the stitch dial. The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel(φ160mm).
A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.

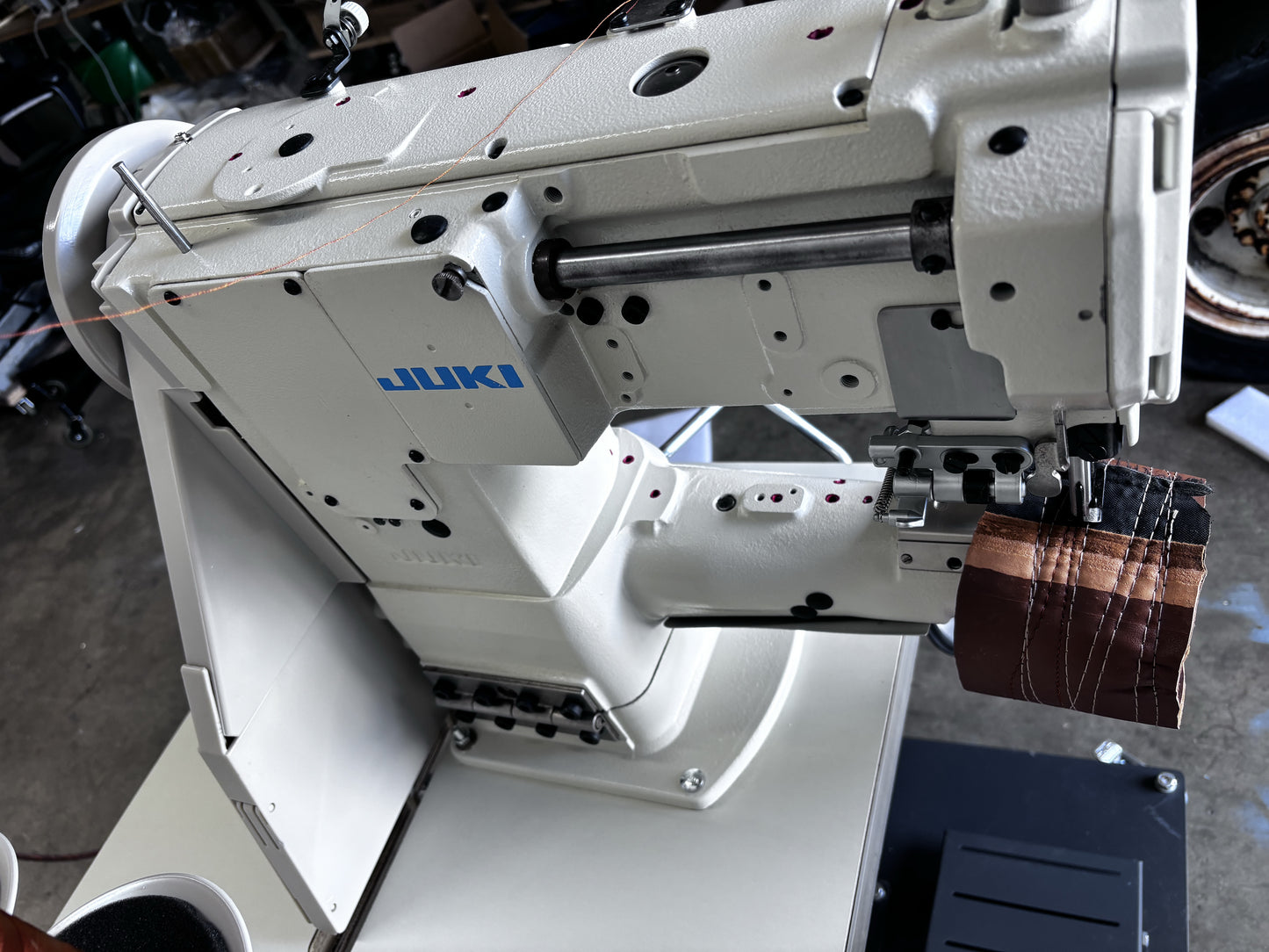

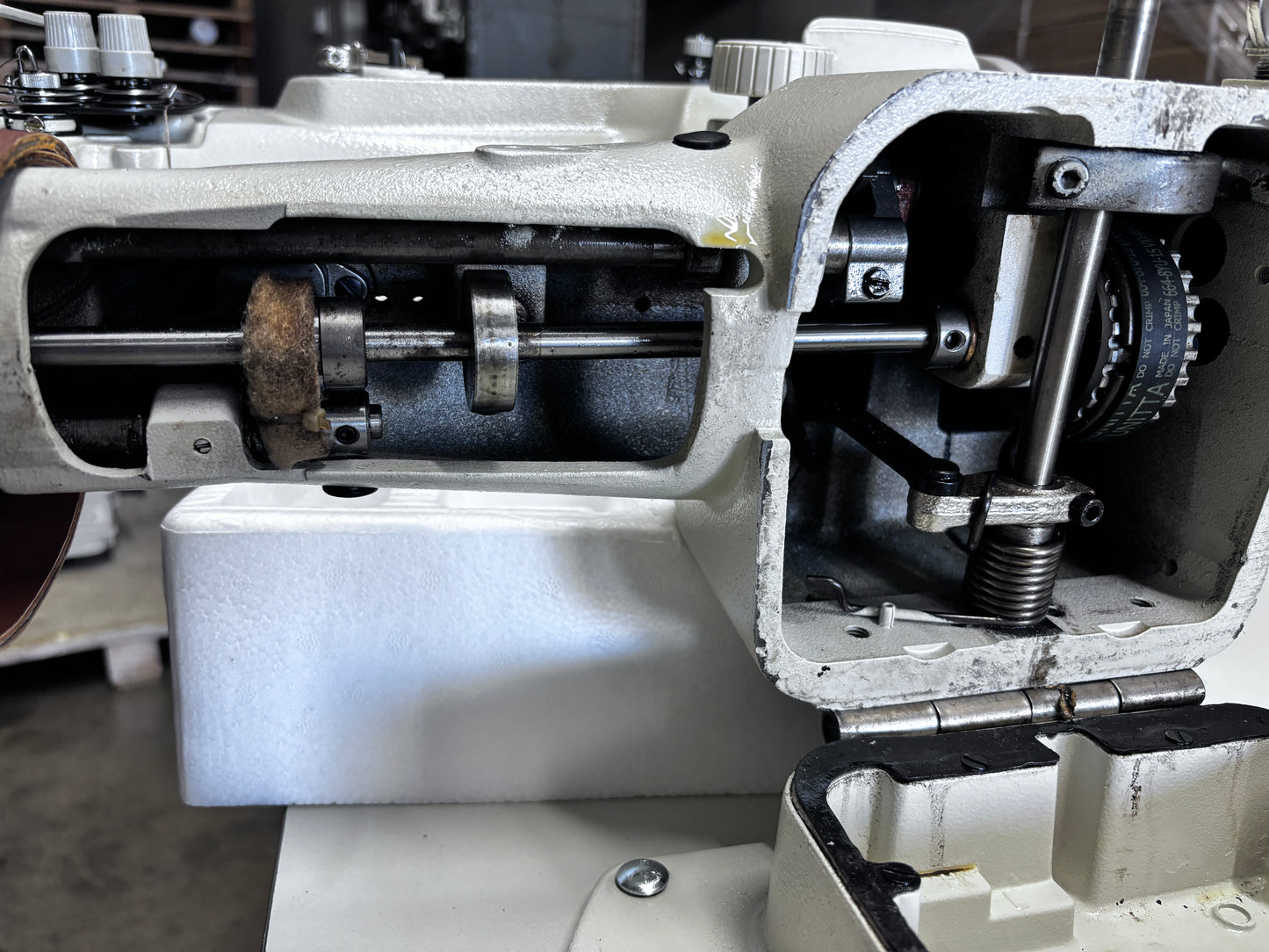

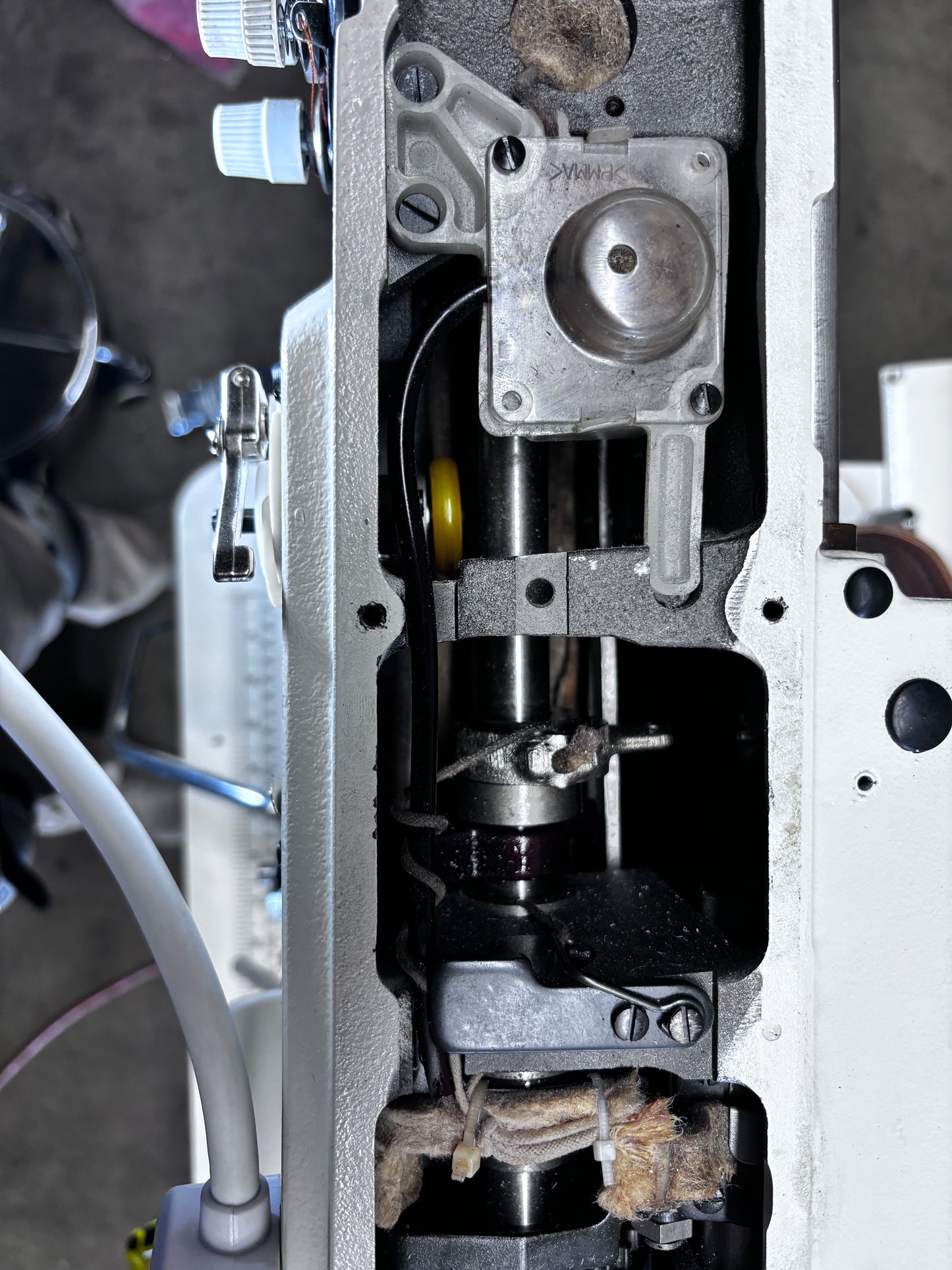

The machine’s full-open-type top design makes adjusting works easier.
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (The hook needs manual oiling with an oiler.)
A walking foot mechanism is built into the machine arm to prevent oil from scattering .
The area around the needle entry is designed to be easily observed.
Since the needle thread-tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry is easily viewable. This substantially improves the operability of the machine.
Standard Package

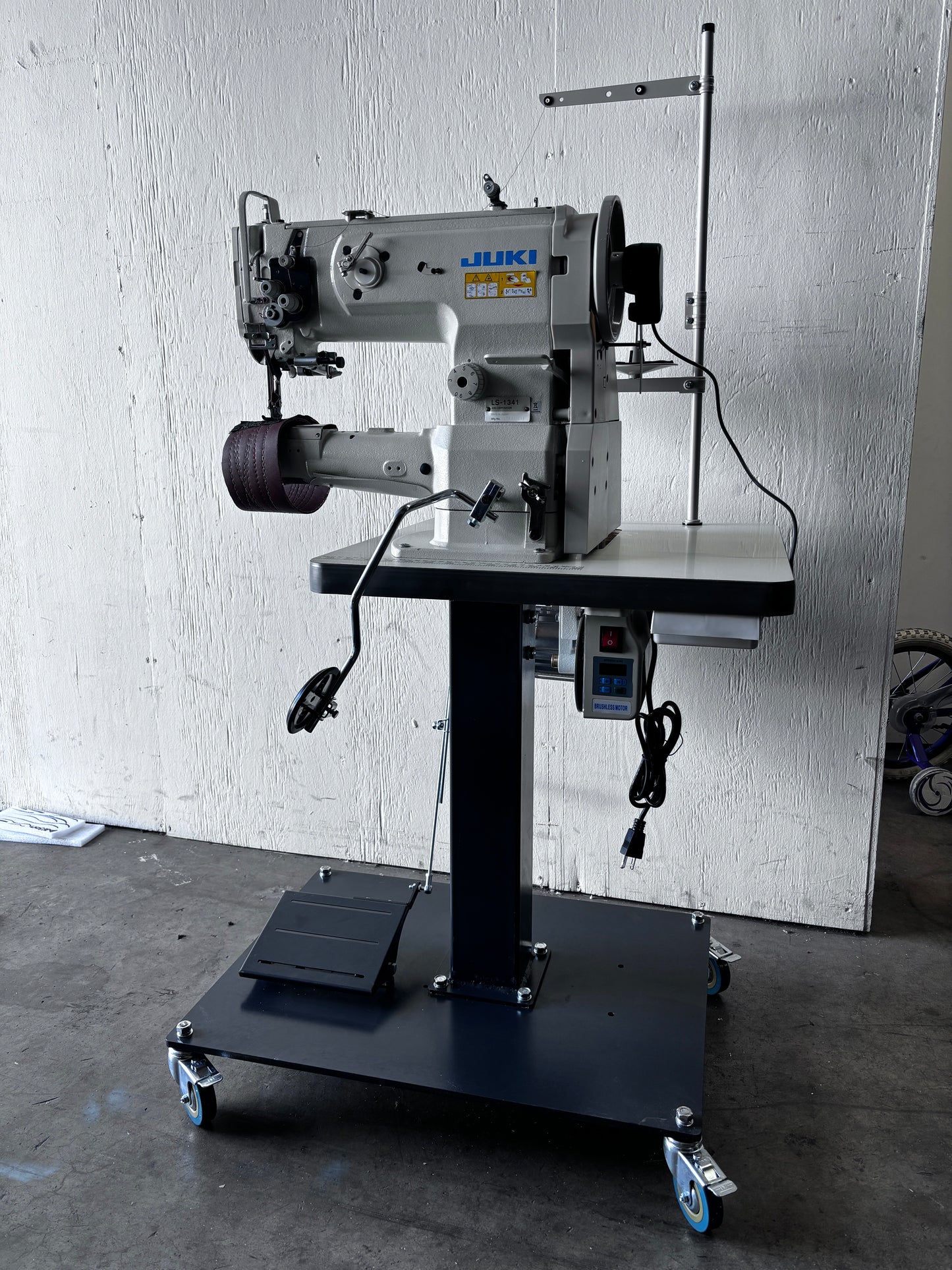

Standard machine will come with machine head, table set, thread stands, 750W Servo motor. Assembled and shipped by pallet.
***Please be advised that this is industrial equipment. Minor blemishes and scratches on the table and legs may occur during the production or shipping process, and these do not indicate any defect or deficiency in the operation of the unit. ***
